Blog

  • Clear SharePoint 2013 Config Cache

    SharePoint 2013 Config Cache fix mostly unstable service or applications, try with cache clear script as troubleshoot them in farm level.  Here the scripts makes perfect with dynamic values of GUI ID and other parameters.

    Standalone farm clean can be done manually but if its multi-tier farm would time conservation so better do with powerful tool. Tweak with below dynamic script that not require any additional changes.

    Cheers!

  • Long exposure night view photograph

    Hey folks, here we are jump into to take a look in night view photograph.  Very first I would like to personally introduce my self to you, don’t go anywhere it would be very short intro just working in private firm and passionate about photography (Converting Photographic Memory System Click Here!) so here to explorer my experience in all way.  Lets talk about the below picture which I took from Nikon D5300 with 50mm prime lense.

    Night view photograph

    night view photograph
    1/30 sec at f/11, ISO 160

    Alway I used to take RAW format so that we could do some post work as color correction, exposure and some other option to play around it.

    Possibly this could be take in iPhone (Click here for phone photography tricks) check it out and post you comments below. Thank you so much have a color full night!

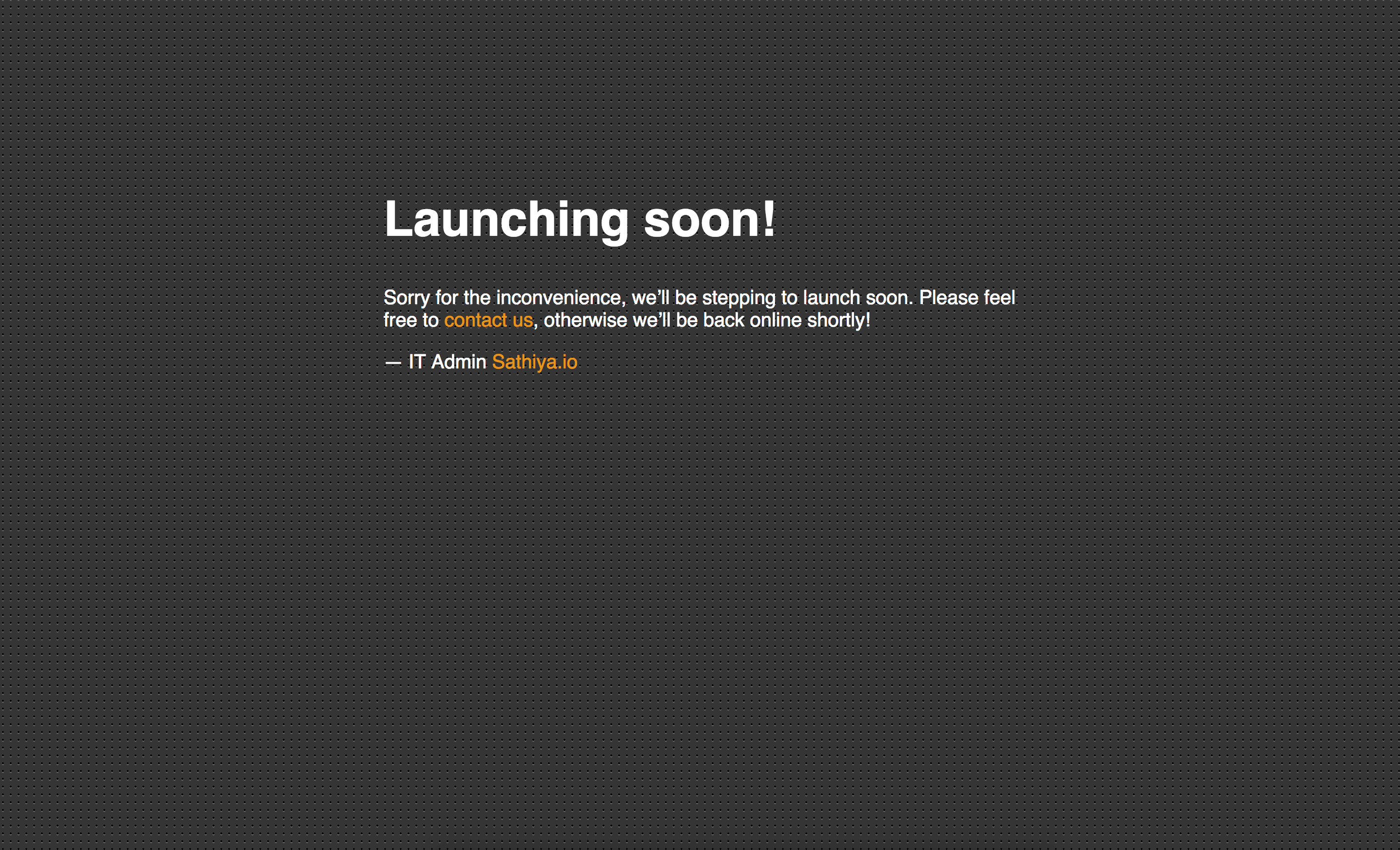

  • Creating textured background HTML5

    Creating textured background HTML5

    Creating texture background HTML5 and making the html page is very simple and hosting in a minute, so here some trick to making more fancy on it.  We have seen in previous post that how to make simple html site maintenance page.

    Creating textured background HTML5 snippet

    I have modified the body text color and added few background tags.  This would make more different than previous one.

    Cheers!

  • SharePoint crawling not working with non-default zone (public facing site)

    Its been very long time to back in here to share the work around fixes.  I have been configured public facing branding site in SharePoint 2013 multi tier environment.

    Servers in the farm

    SPAPP-V01
    SPAPP-V02
    SPWFE-V01
    SPWFE-V02
    SPSQL-AG (Availability group listener)
    SPSQL-V01
    SPSQL-V02
    SPSQL-V03

    Web application has been extended to Internet zone, which is exposed in public via F5, SSL configured on IIS.

    AAM looks like

    http://SPAPP-V01:8080       Default      http://SPAPP-V01:8080
    https://www.sathiya.io            Internet    https://www.sathiya.io
    http://www.sathiya.io              Internet    https://www.sathiya.io
    http://sathiya.io                          Internet    https://www.sathiya.io
    https://sathiya.io                       Internet     https://www.sathiya.io

    SharePoint search was configured with below topology;
    SPAPP-V01 : Admin, Crawler, Content Processing, Analytics Processing & Index Partition
    SPAPP-V02 : Admin, Crawler, Content Processing, Analytics Processing & Index Partition
    SPWFE-V01 : Query Processing
    SPWFE-V02 : Query Processing (more…)

  • Simple HTML Maintenance Page

    We everyone are looking for very simple HTML and classy site maintenance page for hosting. Nowhere we go.website maintenance page

    html maintenance page snippet

    Cheers…!

  • Apps Configuration for SharePoint 2013

    SharePoint apps feature has been looks great in your site. Here the simple steps to configure an apps and few tweaks to ride it.

    Before you jump into the configuration check bellow points;Configuration the domain names in DNS

    • Create dedicated forward lookup zone for SharePoint apps
      • On DNS server, click Start to navigate Administrator Tools and open DNS (or) goto run dnsmgmt.msc
      • In DNS manager, right click Forward Lookup Zones and click New Zone
      • In the wizard, click Next
        DNS1
      • In the Zone Type windows, accept the default of Primary Zone then click Next
        DNS2
      • In the Active Directory Zone Replication Scope page, select the appropriate replication method for your environment
        DNS3
      • In Zone Name, enter your app domain name which will be used for SharePoint apps
        DNS4
      • On the Dynamic Updates windows, select the appropriate types which is apt for you environment
        DNS5
      • Click finish to complete the zone creation
        DNS6
    • Create a wildcard Alias (CNAME) for access an apps
      • In DNS manager, click newly created zone and add New Alias to point to the SharePoint server
        CNAME1
      • In the New Resource Record windows,  enter the Alias name as Wildcard entry (*)
      • Next you have to select the fully qualified domain name (FQDN) for target host
        CNAME1
      • Click Ok to finish the steps
    • To verify the new domain name
      • Go to command prompt
      • From the command prompt you can enter wildcard sub domain host like ping app-ABCDEF12345.sathiyaspapp.com, if you get an reply from source system.  Sound great to move on.
    1. Create a new wildcard SSL certificate (If you have SSL)
    2. Configure the Subscription Settings and App Management service applications
      • To enable the Subscription and App management services from CA
        • Go to SharePoint central administrator site
        • Click Manage services on server under System Settings
        • Start App Management Service and Microsoft SharePoint Foundation Subscription Settings Service
          Services
        • Now you are ready to configure the apps
    3. Configure the App Management service application from CA
      • Go to SharePoint CA
      • Click Manage service applications under Application Management section
      • Top ribbon click New to add App Management Service Application
      • Enter appropriate details like Name, database, app pool account and name
      • Click Ok to create the service application
    4. Configure the App URLs
      • Navigate Apps from Central administrator
      • Click Configure App URLs under App Management
        • An error my throw if the subscription setting service didn’t configured like “The Subscription Settings service and corresponding application and proxy needs to be running in order to make changes to these settings.”
        • Solution: Have to create an service application from PowerShell.  (P.S: We can’t create this service application from CA)
      • In the App domain field, type the domain name which we have created for SharePoint apps
      • In the App prefix field you can use any text for identify it
      • Click Ok
      • Powershell
      • The environment is ready to add apps and use it.  If you are a system account then you will get an error “Everything is fine, but we had a small problem getting your license. Please go back to the SharePoint Store to get this app again and you won’t be charged for it.” because the System Account couldn’t make it.  So use other account to add an app to your site.

    Cheers…!

  • Download Installed SharePoint Solutions

    Tweaks of SharePoint PowerShell script to download installed SharePoint solutions from the farm.  All solution has deployed on server hives folder and the database but there is not option to download them.  Try with below script to attain it.

    Snippet:

    Cheers…!

  • Upgrade SharePoint 2013 Enterprise 15.0.4569.1000 to 15.0.4641.1000

    Upgrade SharePoint 2013 Enterprise 15.0.4569.1000 to 15.0.4641.1000

    To upgrade SharePoint server 2013 Enterprise from 15.0.4569.1000 to 15.0.4641.1000 had a long investigation and searching on web made me confusion.  Even I didn’t find any clear way that to reach there.  So I kept my finger crossed and jump into my another SP Farm which has the same build.  Finally got a clue and spins a toss.  What does it? Just keep down your’s eyes 🙂

    Once we upgraded SP1 then have to install Aug 2014 CU’s (KB2883086, KB2883085,  KB2883078, KB2880559, KB2760213).

    After that we have to install the security update for SP server KB2880994 file.

    Finally you will get an updated SharePoint server 2013 enterprise with Build 15.0.4641.1000.

    Cheers…!

  • Transact-SQL Restore Latest Backup File

    Transact-SQL Restore Latest Backup File

    Here the very basic steps to restore latest SQL backup file on the backup media location using the below Transact-SQL statement (T-SQL Statement).

    1. Open SQL management studio and make sure the SQL Server Agent is running.  If its not go to windows services.msc and start SQLSERVERAGENT service or use “net start SQLSERVERAGENT” cmd.
      Screenshot 2016-02-25 13.04.20
    2. Expand the Management from object explorer section and right click Maintenance Plans  to create create new maintenance plan.
    3. Drag and drop the Execute T-SQL Statement Task tool from Toolbox windows to design panel.
      Screenshot 2016-02-25 12.52.41
    4. Right click the task to put the below T-SQL statement on it
      Screenshot 2016-02-25 12.52.22
    5. Save the task and run from Jobs under SQL Server Agent
      Screenshot 2016-02-25 12.53.52
      Screenshot 2016-02-25 12.54.03
    6. Make sure the job successfully completed and check the database updates.

    Cheers…!

  • GP Web client error with SSL/TLS

    We have already seen the cross domain issue with the previous post. Here the security issue with SSL/TLS to establish trust relationship to session central service.

    Error:

    An error occurred during session monitoring: ‘System.ServiceModel.Security.SecurityNegotiationException: Could not establish trust relationship for the SSL/TLS secure channel with authority ‘marinerydynamics.cloudapp.net:48650’. —> System.Net.WebException: The underlying connection was closed: Could not establish trust relationship for the SSL/TLS secure channel. —> System.Security.Authentication.AuthenticationException: The remote certificate is invalid according to the validation procedure.

    Resolution:
    The web application ssl has been configured in IIS, but we have to create the trust certification access from windows certificate manager console.
    Hove to copy the SSL certificate from personal to “Trust Root Certificate Authority” section. Now the service certification will be authorized to establish the connection.

    1. Go to Run command and type certmgr.msc.

    2. Now expand the Certificate–>Personal -> Certificate

    3. Select the web site certificate which is installed on IIS. Right click and copy the certificate

    4. Now expand the Certificate–>Trusted Root Certification Authorities -> Certificate. Right click and past it

    6. Now enter the GP web client url.
